All-in-one

HiFi Media Player

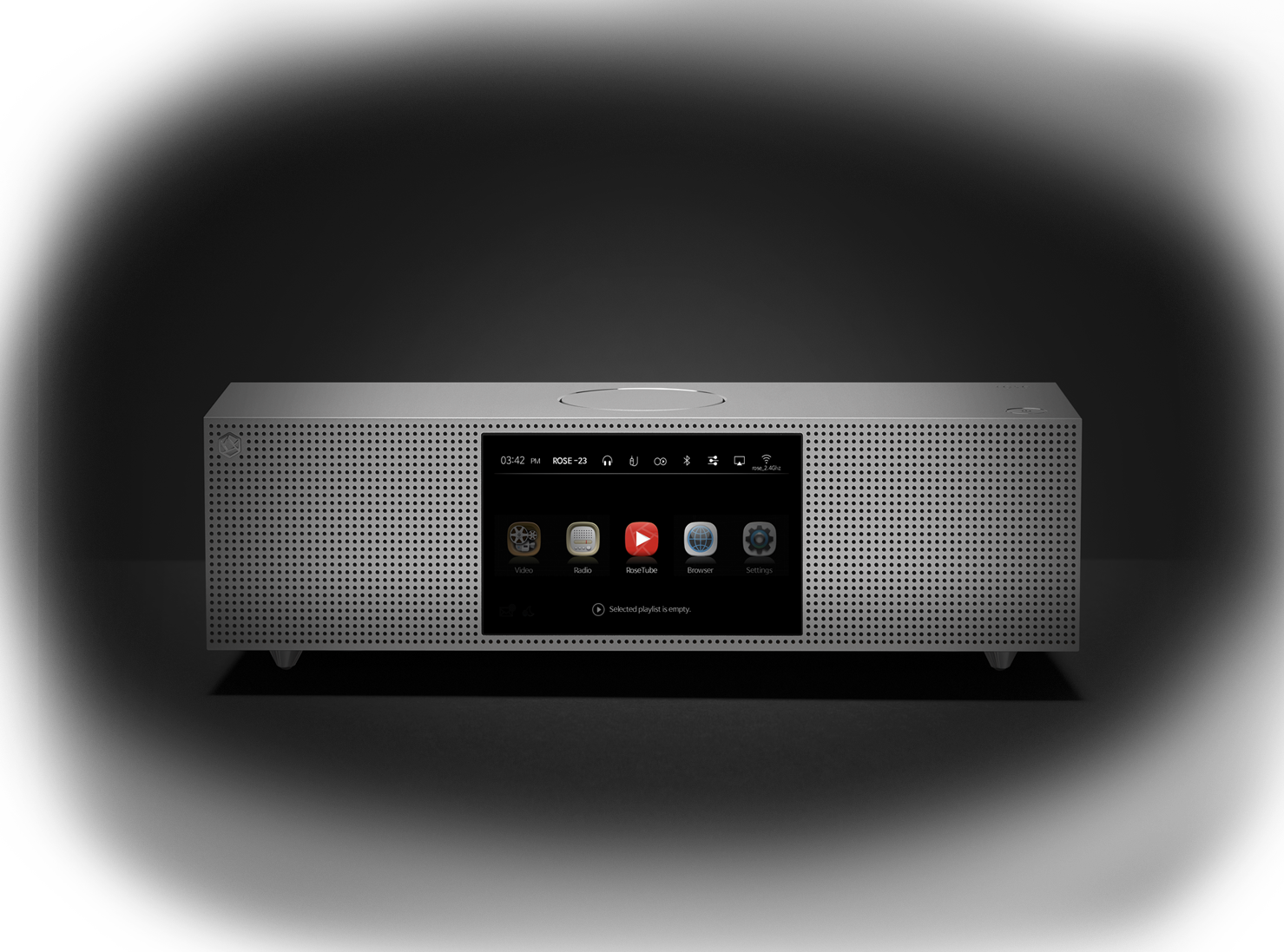

Studio Mastering Sound Player RS301

Anyone with HiFi Media Player(RS301) can listen and feel
its original sound source as it has with its modernized
opening in high class aluminum finishing.
Especially, its outer control has been totally simplified.

MINIMAL DESIGN

Design Award

- Triple Crown Achieved

3 Major Design Award (IF, Reddot)
and PINUP(Korea) Design Award-Best of Best
RS301 fill your own place up. Its outer design packs
your not only sound air but also your sensitivity

Solid aluminum frame

High-quality aluminum frame with front to rear

Complete with 2,047 punches shows the culmination

of metal processing technology.

Touch Display

RS301 provides perfect user-friendly control

having wide view high resolution touch screen.

MASTERING QUALITY SOUND

Crystal Clear Sound

delivery as the original

sound it is

Dynamic Super Bass – 3 way full range speaker

configuration with dual passive radiator and duct.

ROSE’s Patent

All the HiFi Sound Expertise has been accumulated
by ROSE’s patented technology as High Resolution
Speaker, High Precise Amp. design technique
for Dual Passive Radiator Duct Module having
its great audio performance

HiFi High Resolution Speaker

20mm High Resolution Tweeter for Crystal Clear Sound
and 63mm High Performance Mid-Range for packed
sound with own developed Dual Passive Radiator Woofer
engine finally give well balanced Reference Sound.

High Resolution and Definition Amp.

Applied High Speed Gate Driver Technique and optimized
combined feedback design into the High Definition Amp.
provides Pure Sound with stable sound quality and high
separation, noiseless without distortion.

High Quality Sound
– Original Sound Source Player

Studio Level as Ultra High Resolution
- DSD. FLAC. PCM 32bit-384kHz via local or network.

EASY CONNECT

Various Source

and Network Streaming

A/V files in Micro SD, USB playback not only locally

but also Smartphone, Tablet, PC, NAS, DLNA, Airplay,

Bluetooth via wireless Network are generated. –

Dial Service by Android devices. AUX. USB PC Connection.

  • DLNA
    AV files in mobile phone, PC and NAS are generated in the same AP.
  • USB/Micro SD Media Playback
    Any sound source, high definition video in USB or Micro SD are conveniently generated.
  • Air Play
    High Quality Sound via Airplay.
  • AUX support
    external Connection from the conventional type of audio devices to CD Player
  • Bluetooth 4.1
    Compatible with BT devices.
  • USB PC Connection
    Audio files in PC or movie, game etc are brought back through USB cable as a role of PC Speaker.

LIFE STYLE

Smart and Convenient

watching YouTube via ROSE Tube that let A/V

be high quality sound source and high definition video,

Internet Radio, ROSE Podcast that produce per country

and music genre and digital amenities as clock, alarm,

temp. wind speed, fine dust, weather info. etc.

  • Music
    Audio files Playback in the local drive and Playlist function gives you classified.
  • YouTube without ads.
    You can make your own favorite playlist by searching.
  • High Quality Definition Playback
    supported MKV. MP4 for soundtrack, clip, movie etc.
  • Internet Radio
    expect for the Internet Radio Channels by ROSE, the function of editing, registering channels is provided.
  • Podcast
    Own developed ROSE Podcast has you enjoy media entertainment as classified music genre, per country etc.
  • Digital Amenities
    RS350 also provides Digital Amenities as clock. Alarm. Position. Temp. fine dust, weather info. etc.
Remote App. (ROSE Connect)
RS301 is controlled by mobile phone via ROSE Connect (App)
for friendly usage.
* Music. Video. Raido. ROSE Tube. ROSE Podcast. Power.
Volume and Remocon function.

Specifications

OS
Android 5.0 (Lollipop)
Design
Size
360 x 110 x 108 mm
Weight
2.2kg
Volume knob
70mm Volume dial
Finishing
High-Quality anodized aluminum case
Display
Wide view 5" multi touch screen
Power
Maximum output
50W
Speaker Confiquration
3-way Full Range
Tweeter (8ohm ± 15%) - 10W x 2, 20mm Dom, Sensitivity(5K, 6K, 8K, 10K) 93dB ± 3dB
MidRange (8ohm ±15%) -10W x 2 66mm Dom
Woofer (Dual Passive Radiator) - 5W
Wireless
Wired
Ethernet 10/100 BASE-T
Wireless
WiFi (802.11 a/b/g/n)
Blutooth
Bluetooth 4.0 (AD2DP SINK, AVRCP)
Streaming
Airplay / DLNA / DIAL Service
Input, Output
Audio input
Aux Input: 3.5mm x 1
Audio output
Headphone Out : Connection for 3.5mm headphone
Media connection
USB2.0 A type x 2
USB2.0 B type x 1 (For PC Audio)
Micro USB2.0 x 1 (Only for service)
MicroSD x 1
Supported codec
Auido
WAV, FLAC, WMA, MP3, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-C3, MID, MPL, MP2, MPC, MPGA, M4A
PCM 32bit/ 384KHz
Native DSD256( 11.2MHz)
Video
MPEG-1, MPEG-2, MPEG-4,H.263, H.264, H.265, VC-1, VP8, MVC
H.264 up to HP level 4.2 : 1080p@60fps
H.265 up to MP Level 4.1 High Tier : 1080P@60fps
Power
Input power
AC100-240V, 50/60Hz
Output power
DC 19V, 3.0A
Standby power
Passive standby<0.5W, Active standby 5~20W
Update
SW update via internet, manual update via USB
Remote control
Remote controller
BT Remote controller, Optional
Remote App
ROSE Connect (Android, iOS)
Accessory
AC adapter x 1, Quick guide x 1, Foot Spike x 2, Silicon pad x 4
*Exclusive stand for RS301 - RS901 (Optional)

“Rose” even a bunch of roses but the flower that keeps the value of
existence and beauty. ROSE™ is the combined HiFi Media Player Brand
that has been created with the sophisticated technologies between
audiophiles in their 30 years career and seasoned acoustic engineer over the years.
